PT
PT series

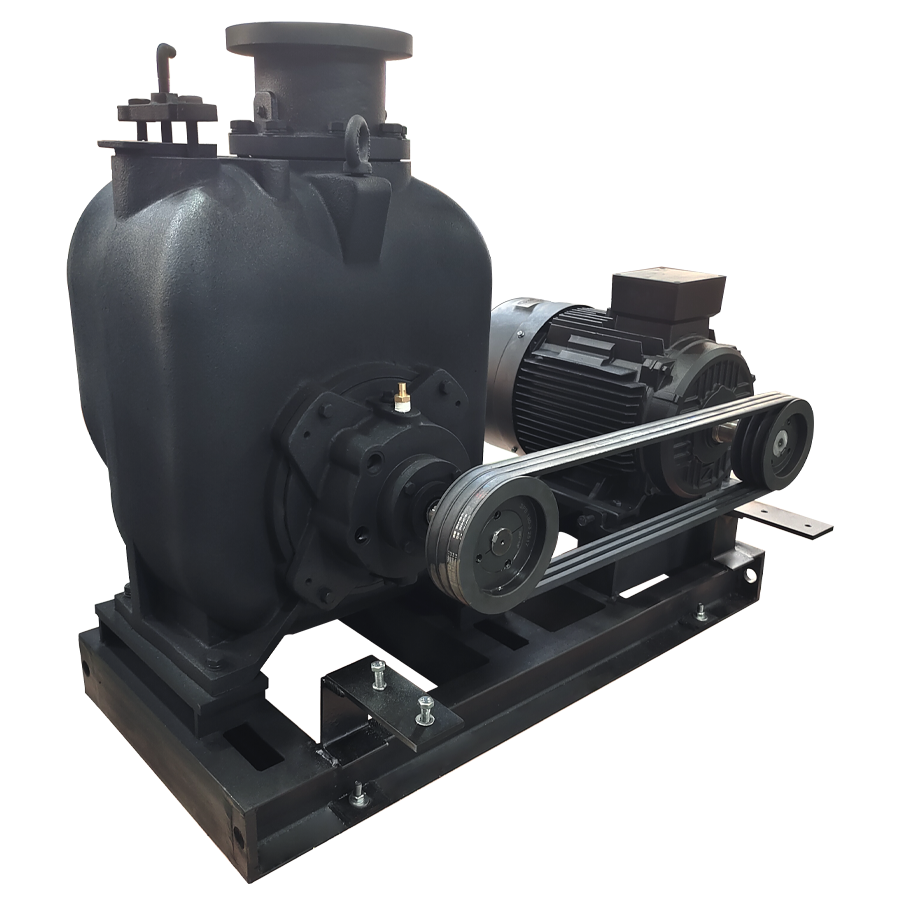

Pump Name: Self-priming Pump
Description:
PT series pumps are designed for economical, trouble-free operation. The superior solids handling capabilities of the pump make it ideally suited for a variety of applications including solids-laden liquids and slurries.
The impeller, seal, wears plate and flap valve can all be accessed through the cover plate opening for inspection or service. Atmospheric barrier along with a lip seal provide additional protection of bearings, also allows external monitoring.
Cartridge mechanical seal is specifically designed for abrasive and or trash handling service.
The entire rotating assembly can be removed without disturbing pump volute or piping .
Description
Application
Self-priming pump can be used in situations like altitude from surface or operating far away from place of water; after the first time pour in water, it can be all-time-self-priming. Application situations such like home water supply; farm water supply; and Industial water supply&leadings; and fire-fighting system, etc.
Performance Scope
Max. Flow rate (m³/h)
600
Max. Head (m)
30
Max. Power (kW)
75
Medium Temperature (℃)
<40
Discharge Diameter (mm)
50-200
