backward centrifugal fan

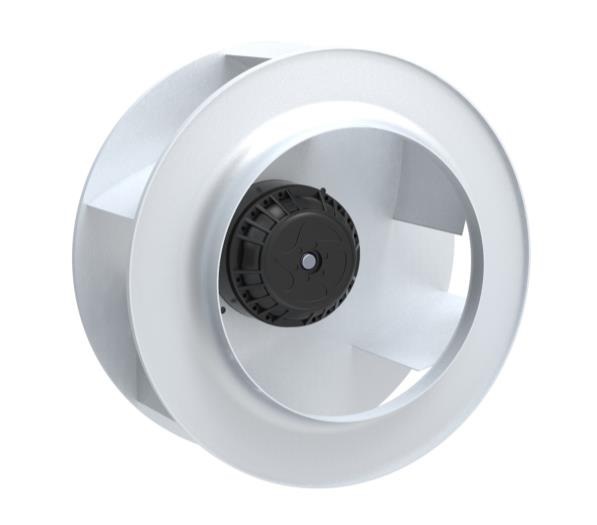

Steel wheel-backward centrifugal fan

TEHCHNICAL DATA

AC&EC motor optional.
Diameter: 225mm~560mm
Flow rate: 1000m³/h~8400 m³/h
Temp: -30℃~+60℃
Voltage: 220V/380V
Frequence:50HZ/60HZ
Impeller MATERIAL: Aluminum Alloy



Plastic wheel-backward centrifugal fan

TEHCHNICAL DATA

AC&EC motor optional.
Diameter: 133mm~250mm
Flow rate: 220m³/h~1300m³/h
Temp: -30℃~+60℃
Voltage: 220V/380V
Frequence:50HZ/60HZ
Impeller MATERIAL: Plastic


PLUG FAN

TEHCHNICAL DATA

AC&EC motor optional.
Diameter: 175mm~630mm
Flow rate: 1000m³/h~25000m³/h
Temp: -30℃~+60℃
Voltage: 220V/380V
Frequence:50HZ/60HZ
Impeller MATERIAL: Plastic/Aluminum Alloy
